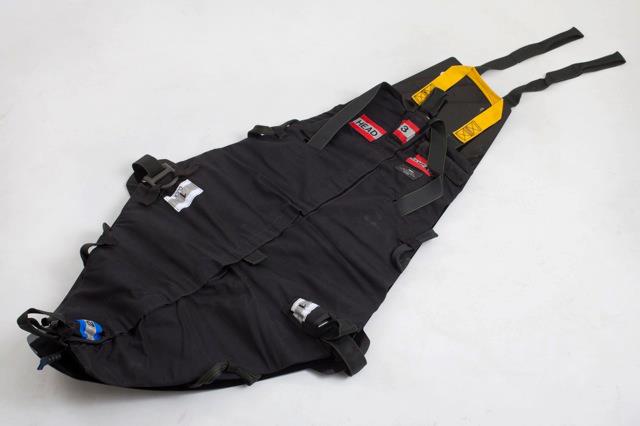

The Rite Rescue Patriot RAP

A Rapid Intervention Rescue Device

buy online icon

Easy to deploy and reset in seconds, the system can be used to drag, carry, lift or lower a victim during confined space extrications. Oversized rings and snaps allow quick closure even when wearing bulky fire fighting gloves. The system is designed so that air supplies do not need to be removed when transporting First Responders. When the sled is not in use, it can be rolled up and stored.

Includes The Following:

  • Patriot RAP I Device
  • Harness & Bag
  • Patriot I Base (Smallest)
  • Carry Sleeve
  • Carry Bag
  • Bridle System

Downloads

- Product Line Card

- Extraction Rap Instructions

- Re-Setting The Extraction Rap



tactical rap





Features And Benefits:

The RAP (remove & protect) was designed to remove an unconscious Firefighter….Key features of the RAP make it the most effective tool for any RIT team across the nation. Nothing on the market has the capabilities for this type of operation. The Light weight allows for mobility while locating the victim.  Ready for use when deployed. The base is made of a specialty material and rolls open when released. Positioning is made easy with the color coordination RED for the head White for the waist  Blue for the bottom. Large “T” handles are designed to be found with a gloved hand and pulled from the keeper. Rated snap hooks & D-ring are the hardwear components used to create the harness systems. It takes less the 30 seconds to apply a Class III harness in an IDLH when using the Patriot RAP. The The webbing is type VII mil spec Mil-W-4088. The Patriot RAP has been tested by the UL to the NFPA standards 1983/2012 edition passed and exceeded testing criteria. The base platform is also removable, this add's longevity to the device. When the base wears through just put a new base on. On the top of the RAP there are 2 drag handles and a Yellowhoist connection point. The RAP can be Dragged - Carried or Hosted to safety.

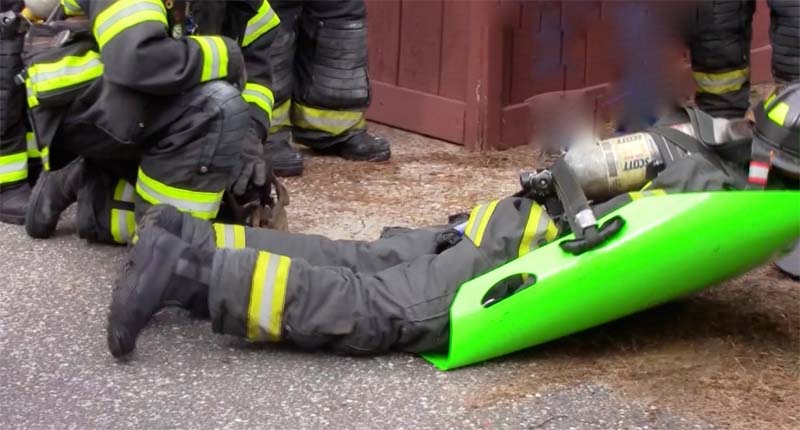

Instructions: How to apply

  1. Line RAP up with head of victim.
  2. Pull carry sleeve tab and the RAP will roll out
  3. Place victim face DOWN on RAP
  4. Remove D-ring
  5. Pull Waist T handle & snap hook fron side and connect snap hook to D-ring
  6. Pull Bottom T handle and connect to center D-ring
  7. Pull Head T handle and connect to center D-ring
  8. Drag or hoist to safety

The simplicity of this device will accomplish many objectives on the fire ground. First and foremost the speed of removing a downed firefighter will be decreased drastically by minutes. This limiting the time exposed to the IDLH and fire conditions. The only time we control as a RIT team, is the time it takes for the removal of the firefighter from the IDLH!!!

Next aspect is giving the RIT team  an option for removal. There are almost no practical devices for this type of operation. Until now. Very commonly the downed firefighter is almost striped of his gear by the time he is out. The packaging of him in the RAP keeps everything tucked in and reduces his profile for maneuvering around obstacles. And lastly the time it takes to learn how to use the system. The learning curve  for the RAP is limited. In a 5 minute session you will have a complete understanding and capability on how to use the RAP. This will help the officers create a more powerful RIT team when called to do the unthinkable.

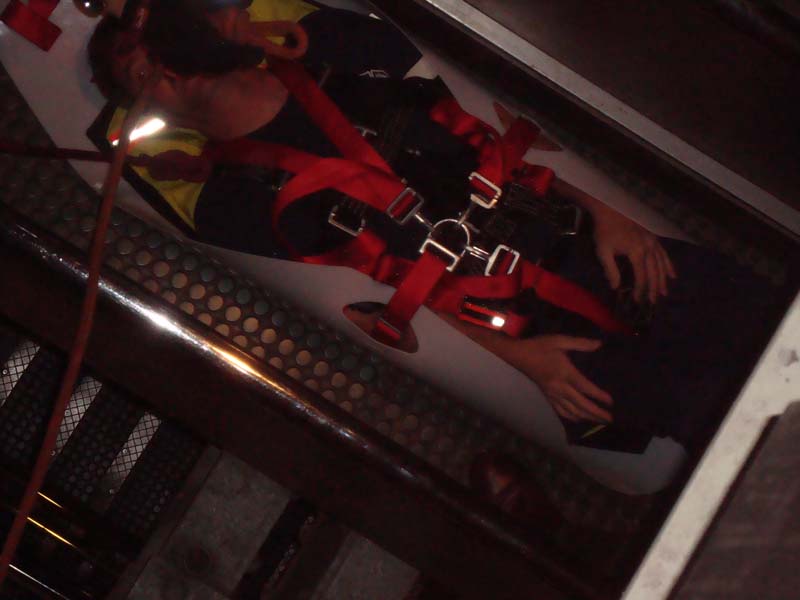

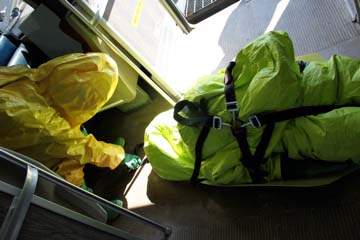

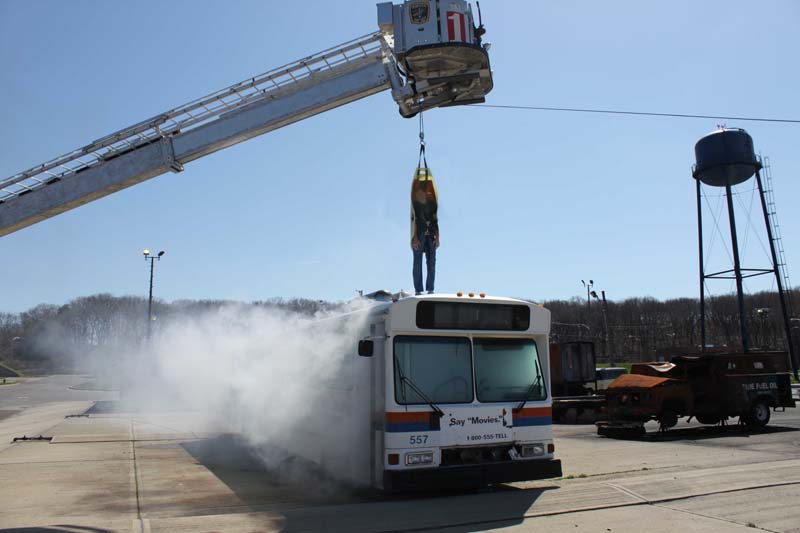

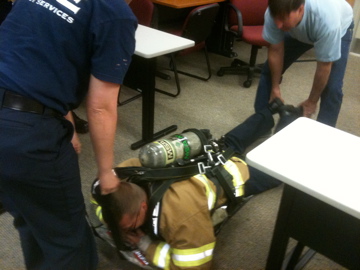

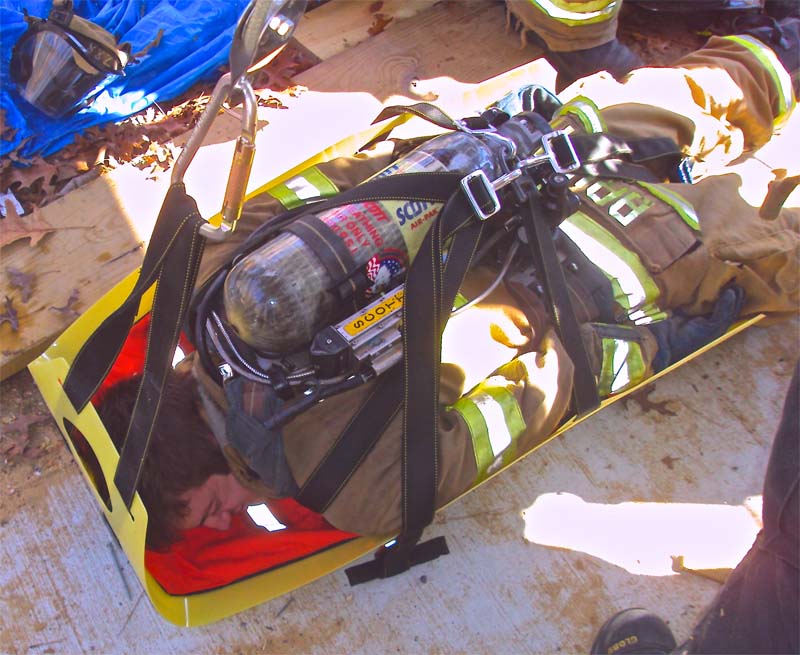

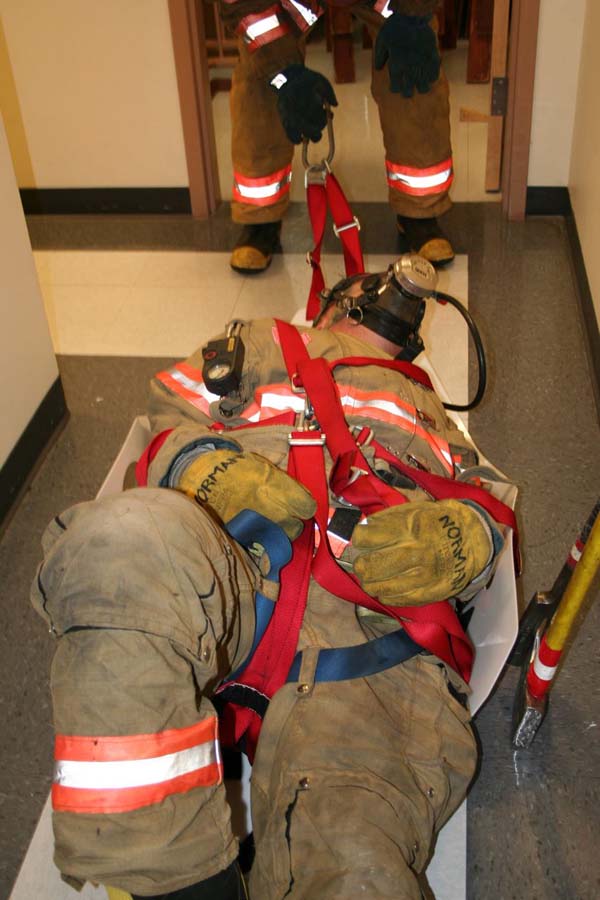

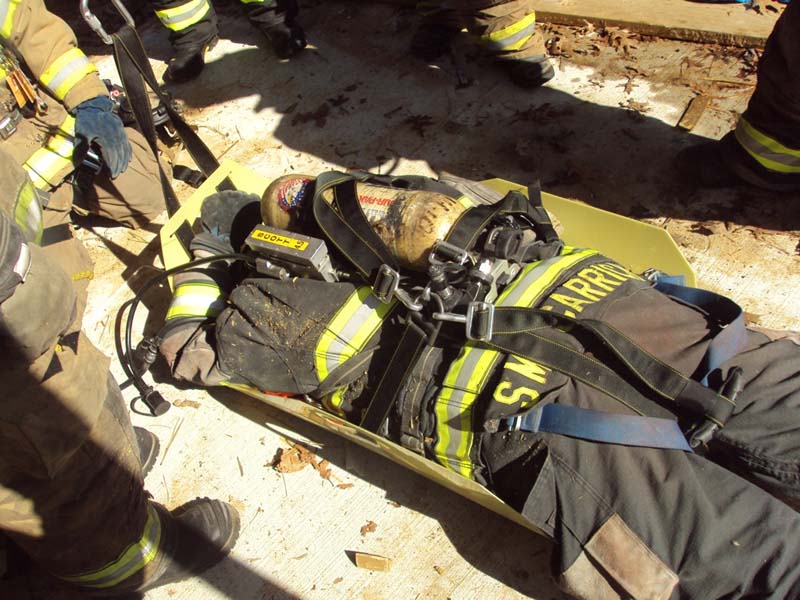

Rap Gallery

RAP Instructions

Our History

rollovers home 03rollovers home 05rollovers home 07       rollovers home 09         rollovers home 11

A RAPID Intervention Rescue Device: The RITE Rescue System was originally designed by firefighters to remove unconscious victims from below grade or from tight spaces. The system weighs less than 6 lbs and has a NFPA 1983 rated full body harness. Easy to deploy and reset in seconds, the system can be used to drag, carry, lift or lower a victim during confined space extrications. Oversized rings and snaps allow quick closure even when wearing bulky fire fighting gloves. The system is designed so that air supplies do not need to be removed when transporting First Responders. When the sled is not in use, it can be rolled up and stored.
